New S1 TITAN



HANDHELD XRF SPECTROMETERS





S1 TITAN



Portable Elemental Analysis From Mg - U



Shielded Detector- Guaranteed!



Wide Range of Applications







2

Times Faster

New graphene SDD detectors mean 2 times faster light element measurement!





50

Newton Force

Bruker proprietary detector shield is guaranteed protection to the detector, it can withstand more than 50 newtons force on the point of a dart tip.





3

mm

Small Spot Collimator

Optional 3 mm collimator enables accurate measurement of small components and welds.

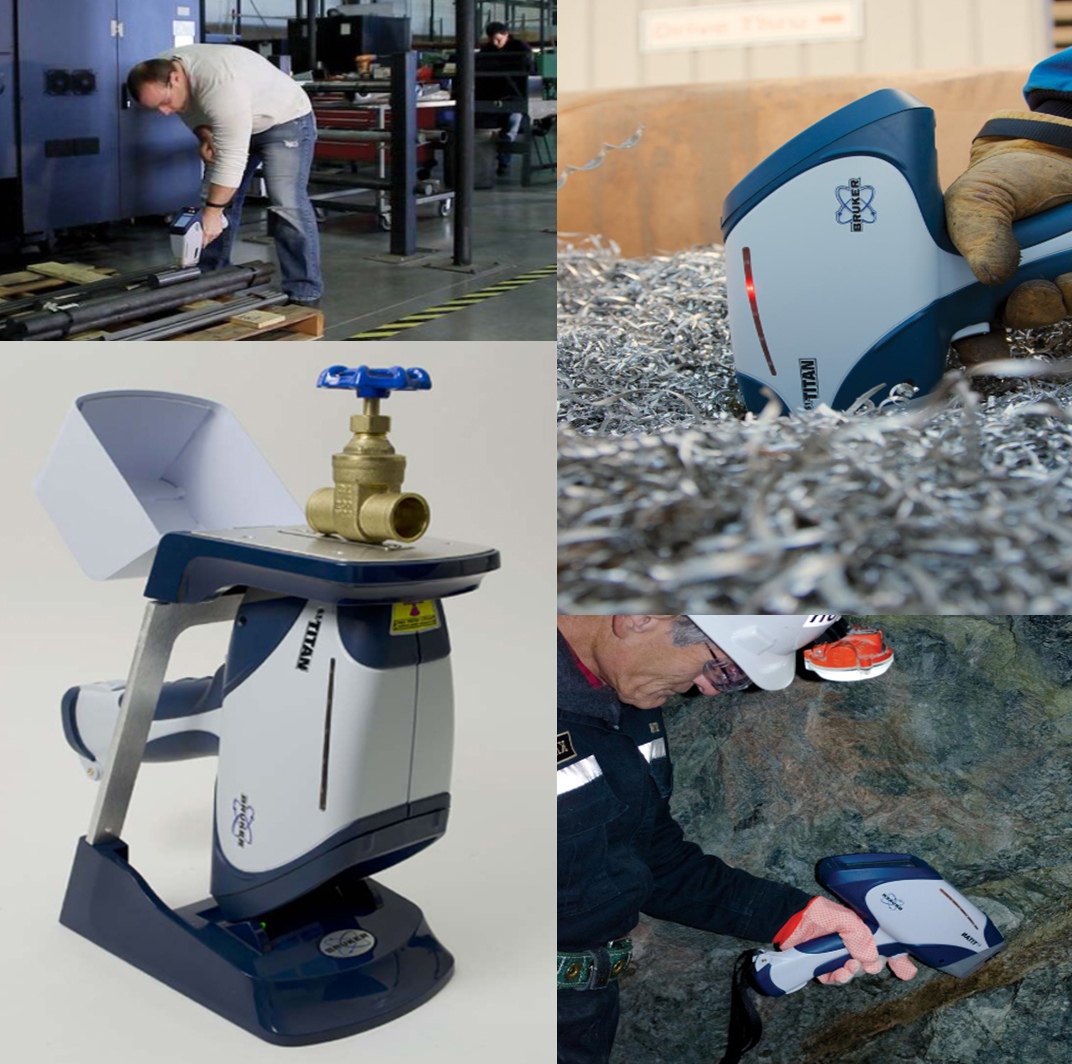

The S1 TITAN is lightweight (1.5 kg, including battery) and rugged handheld XRF analyzer. Fast analysis speed and exceptional accuracy are two key attributes that help define the S1 TITAN.


Other Innovative Features Include:

• - 50 kV X-ray tube
• - Latest graphene window detector technology
• - TITAN detector shield - guaranteed detector protection
• - SMART Grade timing for fast alloy grade ID
• - Wi-Fi and USB connectivity
• - An extremely tough housing that is sealed against humid and dusty environments



The S1 TITAN HHXRF series is available in three configurations: models 800, 500 and 500S. All models use the latest graphene window SDD detector technology which enables faster light element analysis. The S1 TITAN 800 use a large area detector to give you incredibly fast analysis times. The S1 TITAN 500 and 500S are configured with a fast and accurate standard SDD detector. All models are equipped with TITAN Detector Shield which provides a guaranteed detector protection. In addition, the S1 TITAN can be configured with calibrations that are optimized for a variety of sample materials- including a wide range of alloys, metal coatings, various mining & environmental samples, as well as restricted materials.



TITAN Detector Shield

The ultimate defense against punctured detectors, GUARANTEED!

• - Do you analyze metal turning or fine wires with your XRF gun?
• - Have you ever punctured your XRF gun’s detector?

Then you know that the cost to repair a detector can range from $7,000 to $10,000…plus potential down-time.

The TITAN Detector Shield can minimize these risks!





S1 TITAN Benefits at a Glance:

Available calibrations include: alloy, gold and precious metals, catalytic converters, soil, mining, restricted materials, metal coatings and customer specific



• - Latest graphene window SDD detector technology
• - Superior count rates and resolution
• - Faster than previous generations
• - Lower detection limits
• - Easy analysis of light elements, such as magnesium, aluminum and silicon, without the need for vacuum or helium atmosphere (S1 TITAN 800 and 500S)





What Is Your Analytical Challenge?



METAL ALLOYS

Alloy Analysis and Positive Material Identification (PMI)

Determining the precise chemical composition and alloy grade of metal is a common need in many industries. Handheld XRF alloy analyzer that is fast, accurate, non-destructive, and highly portable is the cornerstone of efficient operation whether you are a metal refiner, recycler, inspection company, or fabricator.



GEOSCIENCE

Geo Expoloration

Mining and exploration requires quick decision making from the best possible data. The S1 TITAN Handheld XRF empowers decision makers to collect more data, quicker. The S1 TITAN is a real-time addition in the raw materials value stream, with the unique ability to use your traditional laboratory analysis to confirm and recalculate results.



RESTRICTED MATERIALS

Consumer Safety & Security

Fast, non-destructive screening of consumer products for heavy metals is essential to the product safety. Toys, trinkets, clothing and decorative objects aren’t the only products to be tested. Personal care products including nutraceuticals and cosmeceuticals also need to be safe. And, electronics and appliances need to be RoHS screened prior to use or recycling.



APPLICATIONS:

1) QA/QC and positive material identification (PMI) in fabrication

2) PMI for plant / refinery safety -API-RP-578 Compliance, API-RP-939-C Compliance

3) Scrap metal sorting

4) Aerospace alloys

5) Gold testing

6) Precious metals testing

7) Mine face

8) Ore grade control

9) Core analysis

10) Mineral exploration

11) Food Safety & Agriculture

12) Geochemical mapping

13) Soil analysis

14) Metal recovery

15) Lead in Children’s Products

16) ASTM-F963

17) Toxics in Packaging Clearing House (TPCH)

18) Screening Children’s Apparel for Lead

19) Proposition 65 Compliance

20) RoHS

Please contact us for more information
