Thermocouple

Instant Temperature Measurements for STEEL PLANT & FOUNDRIES

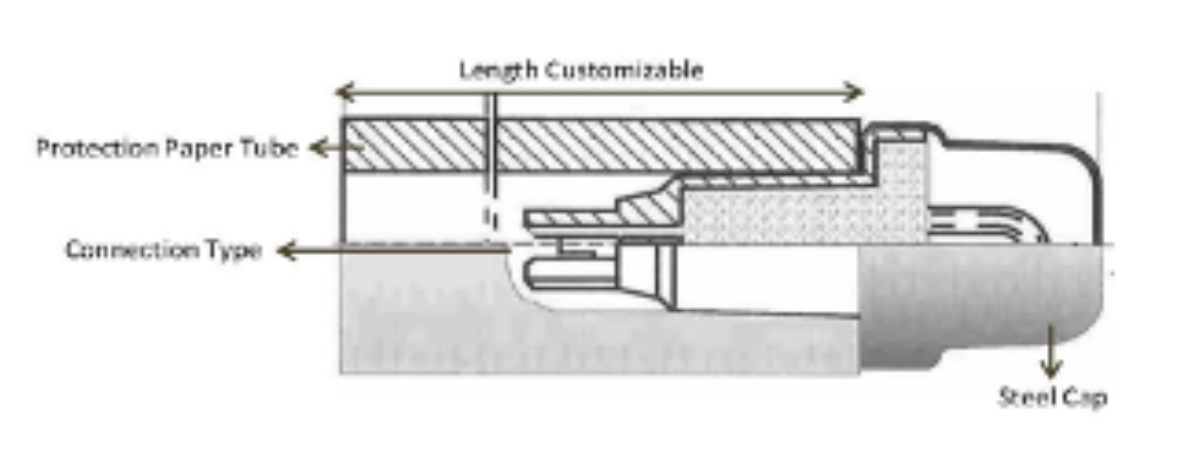

Immersion Disposable Thermocouples are used to measure the temperature directly, precisely and instantly through immersion method in the production & refining of iron, steel & other ferrous and non-ferrous. It is a simple and cost effective instrument and provides the quickest way to get the most accurate readings. The thermocouple is connected to the coupling lance which contains the polarized contact block.

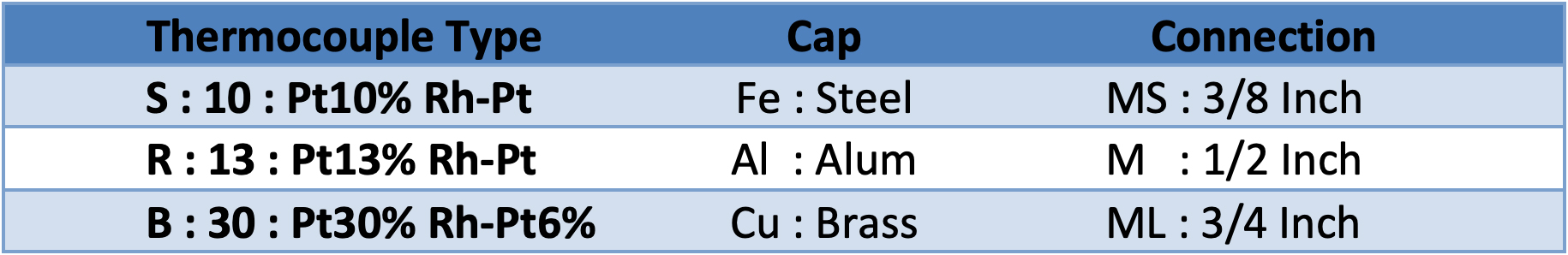

Thermocouple Type R, S, B

- Wide Range of expendables immersion platinum – platinum/rhodium thermocouple.

- Fast, Accurate, Consistent and Reliable Temperature readings for cost-effective Temperature control during iron and steel production.

- Tips and Paper Tubes are fabricated from high quality raw materials for maximum durability and best performance to ensure Multiple Dipping.

Measuring Time : 3 to 6 seconds

Paper Tube Length : Ranging from 300 mm to 2300 mm

Calibration of the thermocouples wire: According to IPTS68, IEC684-1(1977) and JIS C 1602-1981. The reference for Platinum wire is Pt-67 and the tests are done in furnace for calibrating thermocouples. The reference point for standards is the freezing point of palladium in an argon atmosphere.
